    Track Light - P

  • Category:Track Lights

In Detail


Product Features:


LED track light

Using CITIZEN,CREE, EPISTAR COB,
CE approved driver.
lumen>80lm/w


Product Features:


LED track light

Using CITIZEN,CREE, EPISTAR COB,
CE approved driver.
lumen>80lm/w
CRI>90


CRI>90



Feature:

  1. The lamp body is made of high-purity die-casting aluminum alloy, which has anti-corrosion and anti-cracking ability. The coating is processed in three layers, does not change color, and is fashionable and suitable for different occasions.

  2. The newly upgraded COB light source has high color rendering to meet your lighting needs.

  3. The high quality reflector has good concentrating and high light transmittance. The surface is crystal clear and the light is even.

  4. The core LED chip chipset has low energy consumption, high energy efficiency, low light decay, and the wick is matched with an aluminum substrate. The heat is dissipated in time and continues to be bright and new.





2.jpg 3.jpg

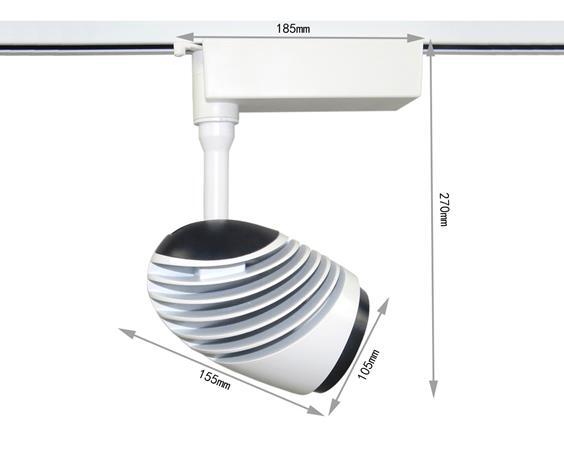

Product  Dimension:





Product  Spec.:



Specification

Series

Pineapple model

Light  Source

CITIZEN  COB

PF

>0.95

Beam   Angle

15°/24°/38°

Voltage

AC85-265V

Ra

≥90Ra

Working    Temperature

 -40℃~65℃

Luminous  efficacy

80lm/W

Driver

PHILIPS

Warranty

3  Years

CCT(K)

3000K/4000K/5000K/6000K

Model    Number

Power

Product    Size

Luminous    Flux(LM)

Wires

XP-TL020

20W

¢105*155MM

2000LM

2/3/4  Wires

XP-TL030

30W

 ¢105*155MM

3000LM

2/3/4  Wires

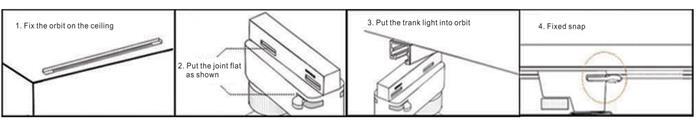

Installation:



-Indoor use only

-Switched off before fitting this product

-Do not touch the lamp when in use

-Don't use it in sealed fixture

-Consult competent electricians for technical support

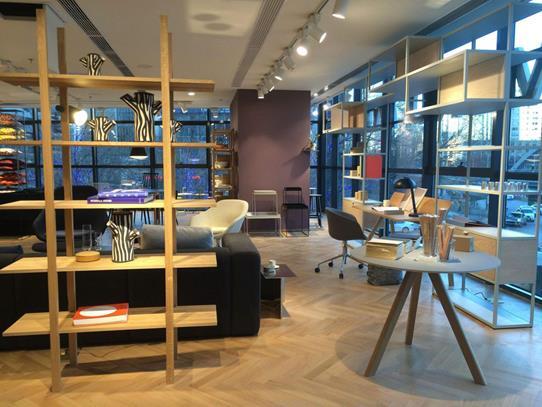

Application :


Widely used in the clothes shop,fashion  shop, gallery ,office building ,shopping malls,supermarkets,municipal  engineering school, hospital ,hotel ,parking lots,factory workshop, household  and so on

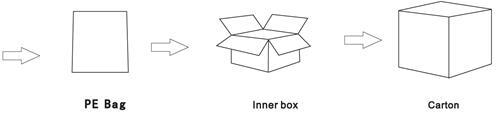

Packaging:


 7.jpg  8.jpg



Power

20W

30W

Product    Size

¢105*155MM

 ¢105*155MM

N.Weight

580g

580g

G.Weight

600g

600g

Inner  Box

20*20*90cm

20*20*90cm
